Advantages of All-in-One Solar Street Light:

Huge cost saving on installation

1. No Trench required
2. No Cable laying required
3. No Feeder Pillar required
4. No Protection MCB required
5. No Skilled labor required for installation

Features of All-in-One Street Light

1. No manual ON-OFF required (Fully automatic)
2. No maintenance required (Lithium-ion battery)
3. Long Life of product +15 Years
4. Long battery Life +3 years
5. Quick & Easy installation
6. Long installation distance between two light (upto 15Mtr)
7. Available in 12W, 15W, 20W & 25W LED
8. Motion sensor - uses energy as required
9. Up to two days autonomy
10. Available in 40Wp/ 60Wp panel
11. Ready to use

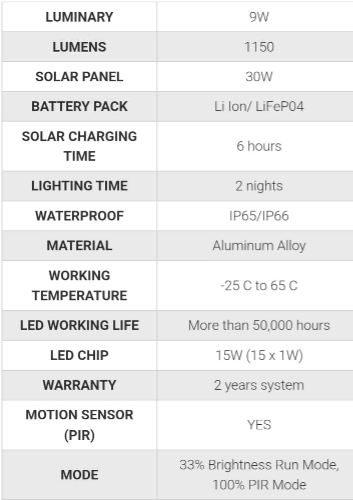

Pricelist & Technical Specification



Advantage of AiO over conventional Solar Street Light

1. No discrete arrangement is to made for panel, battery, battery box, Luminary & Pole
2. Transportation is easy, convenient and safe
3. No maintenance is required for battery (No water Top Up)
4. No risk of battery theft
5. No designer pole required
6. No battery box and lock is required

All In One Solar street light uses a PIR motion sensor to adjust the LED light brightness intelligently. On detecting any movement, the LED glows at full brightness. If no movement is detected for more than 1 minute, the brightness is reduced to one-third. This intelligent brightness control coupled with maintenance free Lithium-ion battery technology provides longer backup time and better battery life.

SOLAR LED STREET LIGHT

1. Customized variant available in LED And CFL Luminary
2. Automatic switch ON & OFF system from dusk to down
3. Easy Installation and maintenance
4. Long hour’s backup with autonomy
5. Weather proof luminaries
6. Onsite service and repair facility
7. Low maintenance required

Solar street lights are raised light sources which are powered by photovoltaic panels generally mounted on the lighting structure or integrated in the pole itself. The photovoltaic panels charge a rechargeable battery, which powers a fluorescent or LED lamp during the night.

Features

Most solar panels turn on and turn off automatically by sensing outdoor light using a light source. Solar streetlights are designed to work throughout the night. Many can stay lit for more than one night if the sun is not available for a couple of days. Older models included lamps that were not fluorescent or LED. Solar lights installed in windy regions are generally equipped with flat panels to better cope with the winds.

Latest designs use wireless technology and fuzzy control theory for battery management. The street lights using this technology can operate as a network with each light having the capability of performing on or off the network.

Components

Solar street lights consist of 4 main parts:

Solar Panel

The solar panel is one of the most important parts of solar street lights, as the solar panel will convert solar energy into electricity. There are 2 types of solar panel: mono-crystalline and poly-crystalline. Conversion rate of mono-crystalline solar panel is much higher than poly-crystalline.Solar panel are varies from wattage systems.

Lighting Fixture

LED is usually used as lighting source of modern solar street light, as the LED will provide much higher Lumens with lower energy consumption. The energy consumption of LED fixture is at least 50% lower than HPS fixture which is widely used as lighting source in Traditional street lights. LEDs lack of warm up time also allows for use of motion detectors for additional efficiency gains.

Rechargeable Battery

Battery will store the electricity from solar panel during the day and provide energy to the fixture during night. The life cycle of the battery is very important to the lifetime of the light and the capacity of the battery will affect the backup days of the lights. There are usually 2 types of batteries: Gel Cell Deep Cycle Battery and Lead Acid Battery and many more.

Pole

Strong Poles are necessary to all street lights, especially to solar street lights as there are often components mounted on the top of the pole: fixtures, panels and sometimes batteries. However, in some newer designs, the PV panels and all electronics are integrated in the pole itself. Wind resistance is also a factor. Also there are some accessories, like foundation cage and battery box.

Types

Solar street light at the bus stop

Each street light can have its own photo voltaic panel, independent of other street lights. Alternately, a number of panels can be installed as a central power source on a separate location and supply power to a number of street lights.

Advantages

1.Solar street lights are independent of the utility grid. Hence, the operation costs are minimized.
2.Solar street lights require much less maintenance compared to conventional street lights.
3.Since external wires are eliminated, risk of accidents are minimized.
4.This is a non polluting source of electricity
5.Separate parts of solar system can be easily carried to the remote areas
6.It allows the saving of energy and also cost.

Disadvantages

1.Initial investment is higher compared to conventional street lights.
2.Risk of theft is higher as equipment costs are comparatively higher.
3.Snow or dust, combined with moisture can accumulate on horizontal PV-panels and reduce or even stop energy production.
4.Rechargeable batteries will need to be replaced several times over the lifetime of the fixtures adding to the total lifetime cost of the light.
The charge and discharge cycles of the battery is also very important considering the overall cost of the project.

SOLAR LED STREET LIGHT PRICELIST



Terms & Conditions:

1. GST extra @ 5%
2. Transport extra at actual
3. Discount available on Qty

All In One Solar street light uses a PIR motion sensor to adjust the LED light brightness intelligently. On detecting any movement, the LED glows at full brightness. If no movement is detected for more than 1 minute, the brightness is reduced to one-third. This intelligent brightness control coupled with maintenance free Lithium-ion battery technology provides longer backup time and better battery life.



Some Features and Benefits :

1. PWM based controllers with up to 98% efficiency
2. Fuseless software controlled protections
3. Automatic selection of 12V/24V battery-no manual operation
4. Option of SMF and Lead Acid battery type selection
5. Best in class conversion efficiency of solar panels

ADVANCED SOLAR WATER PUMPS IS AN AFFORDABLE & RELIABLE ENGINEERED SOLUTION TO PUMP WATER

A solar pumps runs on electricity generated by photovoltaic panels available from collected sunlight as opposed to grid electricity or diesel run water pumps. The operation of solar powered pumps is more economical mainly due to the lower operation and maintenance costs and has less environmental impact than pumps powered by an internal combustion engine (ICE). Solar pumps are useful where grid electricity is unavailable and alternative sources (in particular wind) do not provide sufficient energy.

FEATURES AND BENEFITS

 Energy efficient pumps, motor and controller
 Energy efficient Solar PV modules with minimum life span of 25 yrs.
 Automatic pump controller with MPPT (Max power point tracking)
 No maintenance cost & zero running cost
 Automatic protection against high voltage / low voltage / dry run in the pump controller
 Pump Controller protected against reverse polarity, Over Load and Energy Temperature

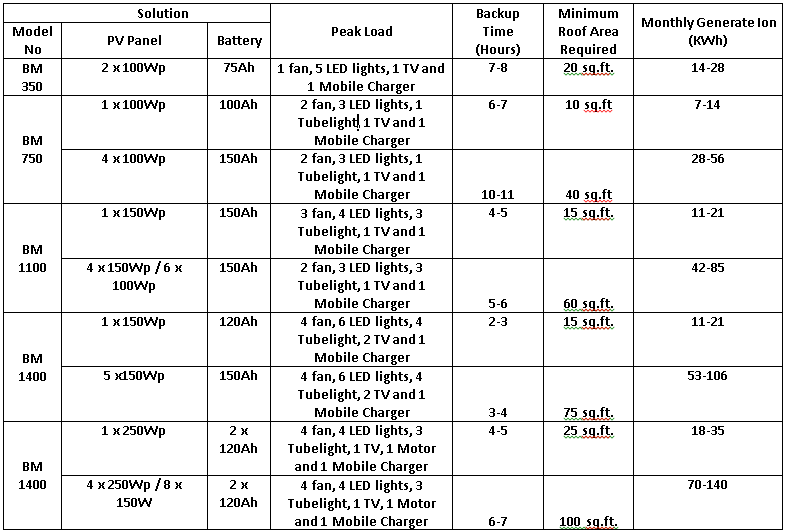

SOLAR POWER PACK



Some features and benefits

1. Simultaneous charges from mains & solar with priority to solar
2. Battery charging commences at 110 Volt mains voltage
3. Inbuilt protection from reverse polarity & reverse current
4. Inbuilt protection from short-circuit, over-charge and deep discharge
5. Pure since wave output from UPS (Except BM 350)
6. Best in class conversion efficiency of solar panels
7. Flexibility to use different types of batteries
